| الاسم التجاري: | GoreLink |
| رقم الطراز: | G228-2442-3 |
| الـ MOQ: | 1pc |
| وقت التسليم: | 1-3 Working days |
| شروط الدفع: | T/T,Paypal,Western Union |

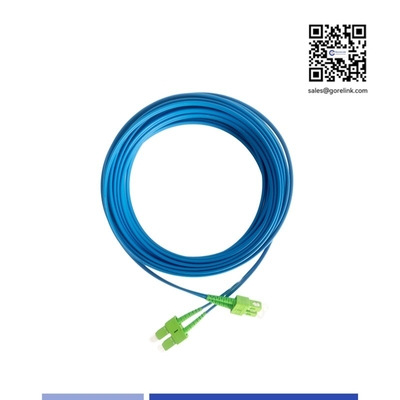

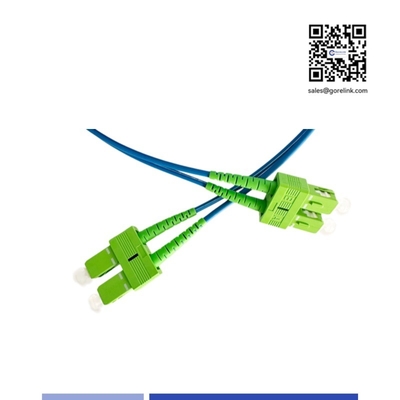

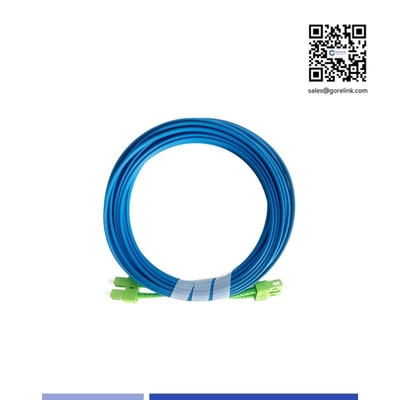

SC-SC Armored Fiber Optic Patch Cable, Singlemode Duplex,3m,LSZH jacket
Gorelink Amored fiber optic patch Cords are designed for being used in harsh environment, in which the traditional standard fiber optic patch lead can not perform structurally to the requirement. Its structure contains stainless steel armor inside the jacket, this will help make the armored fiber patch cord resistant of high tension and pressure and it is not easy to break when bent or dragged. The stainless steel tube prevents optic fiber from damage that improves stability of the system.
It is crush and rodent resistant without being bulky, heavy, or messy.Armored fiber optic patch cables are made with similar outer diameter to standard patch cables, making them both space saving and strong.
Application
FTTH access network
Telecommunication Networks
CCTV Networks
Data Center
Local Area Networks
General Specification
|
Fiber Mode |
Singlemode 9/125um OS2 |
|||
|
Connector |
SC-SC |
|||
|
Cable structure |
Duplex |
|||
|
Strength Member |
Sprial steel with Aramid Yarn |
|||
|
Cable Diameter |
3.0mm |
|||
|
Cable Color |
Blue |
|||
|
Polishing Way |
APC |
|||
|
Connector Color |
Green |
Black (ST,FC) |
||
|
Cable Jacket |
LSZH |
|||
|
Cable length |
As per the order request |
|||
|
OPTICAL PERFORMANCE |
||||
|
Fiber Type |
G.652D |
G.657A |
APC |
|
|
Insertion Loss(IL) |
≤0.3 dB |
≤0.3 dB |
≤0.25 dB |
|
|
Return Loss(RL) |
≥50dB(UPC) |
≥50dB(UPC) |
≥60dB(APC) |
|
Ordering Information
|
PART NO. |
DESCRIPTION |
|
G228-2442-1 |
Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 1m |
|
G228-2442-2 |
Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 2m |
|
G228-2442-3 |
Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 3m |
|
G228-2442-5 |
Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 5m |
|
G228-2442-10 |
Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 10m |
|
G228-2442-15 |
Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 15m |
|
G228-2442-20 |
Armored Fiber optic patch cord, SC/APC-SC/APC SM, Duplex, 3.0mm LSZH jacket 20m |
|
* Customized |
|
If you need any more help, please feel free to contact us at sales@gorelink.com .
|
|
